GPN 640

Flange Covers

Quality advantages

Protection for SAE flanges.

With ring lug for easy handling.

Larger tolerances accomodated by ribs.

With clamping ribs and positioning bars for reliable fit.

GPN 650 Type A

Flange Covers

Quality advantages

Protection for flanges in accordance with DIN EN 1092-1 and DIN EN 28117.

Design B with additional clamping ribs for accomodating larger tolerances.

Closes the opening and protects the sealing face of the flange fitting.

GPN 650 Type B

Flange Covers

Quality advantages

Protection for flanges in accordance with DIN EN 1092-1 and DIN EN 28117.

Design B with additional clamping ribs for accomodating larger tolerances.

Closes the opening and protects the sealing face of the flange fitting.

GPN 655 Type A

Flange Covers

Quality advantages

Protection for flanges in accordance with ASME B 16.5.

Design B with additional clamping ribs for accomodating larger tolerances.

Closes the opening and protects the sealing face of the flange fitting.

GPN 655 Type B

Flange Covers

Quality advantages

Protection for flanges in accordance with ASME B 16.5.

Design B with additional clamping ribs for accomodating larger tolerances.

Closes the opening and protects the sealing face of the flange fitting.

GPN 670

Flange Covers

Quality advantages

Protection for flanges in accordance with DIN EN 12351. Suitable for PN 10 through PN 400 and DN 10 through DN 250 in accordance with DIN 2501 part 1, American National Standard ANSI B 16.5, British Standard BS 4504 and BS 1560, and BASF-Werknorm 14-150.

Larger tolerances accomodated by ribs.

Closes the opening and covers sealing face and internal threads. Prevents accidental dislodging. Also suitable for BASF-Werknorm 14-150. and screw holes. Prevents accidental stripping.

GPN 680

Flange Covers

Quality advantages

Protection for flanges in accordance with DIN EN 12351.

Particularly suitable for fittings with solid lining or tapered bore holes. With hook-snaps for firm fit.

GPN 690

Protective Caps

Quality advantages

Protection for SAE flange collars.

Also suitable for pipe ends and hose-fittings. A circumferential rim ensures firm fit and easy handling.

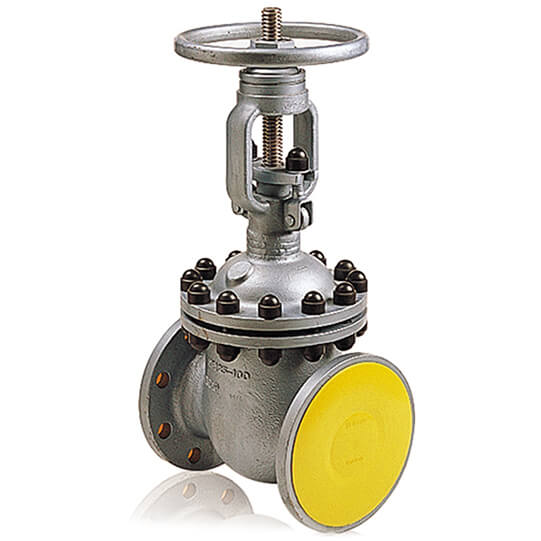

KAPSTO® – FLANGE COVERS

KAPSTO® – plastic flange covers for every application.

Pöppelmann KAPSTO® flange covers provide optimal protection during production, transport and storage. The KAPSTO® standard program provides protective covers in a range of dimensions – the perfect protection for your flange. Our plastic flange covers provide your application with bespoke protection according to your needs. You will find standard protection for flanges in accordance with AMSE, DIN, SAE and BS. Discs, clamping ribs, circumferential rims and rim snaps provide maximum protection, the best possible fitting and quick installation. KAPSTO® plastic flange covers are used in a number of industry sectors: fluid technology, flange manufacturers, sanitation, water pipes, hydraulics, pneumatics, chemicals, the food industry and much more. Whether you are looking for flexible, standard or time-saving solutions – we have the right flange cover for your every need.
