GPN 200 Type A
Protective Caps
Quality advantages
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
Cylindrical caps with easy-to-grip knurled collar for protection of threaded studs, pipe ends and shafts.
GPN 200 Type B
Protective Caps
Quality advantages
Designed for male end connectors in accordance with DIN EN 837-1 and DIN EN 837-3.
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
Easy-to-grip knurled outer wall for easy removal.
GPN 201
Flexible Protective Caps
Quality advantages
Heat resistant to 150 °C.
Suitable for different diameters due to flexible material.
Cylindrical caps with easy-to-grip knurled collar for protection of threaded studs, pipe ends and shafts.
GPN 205
Protective Caps
Quality advantages
Flexible material in combination with internal clamping surfaces help to accomodate larger tolerances.
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
Suitable for studs, external threads, and pins. Easy-to-grip knurled collar and clamping surfaces for firm fit and low-abrasion removal.
GPN 207
Protective Caps with Fins
Quality advantages
Suitable for different diameters due to flexible internal fins.
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
Internal fins providing venting and pressure equalisation.. Suitable for studs, pins, external threads and the mating surfaces of SAE quick-connect plugs.
GPN 240
Protective Caps
Quality advantages
For protecting the mating surfaces of SAE quick-connect plugs.
Suitable for pressure testing depending on the application.
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
The sealing surface of the SAE connector remains untouched.
GPN 241
SAE Sealing Caps
Quality advantages
For protecting the mating surfaces of SAE quick-connect plugs.
Depending on the surface quality of the SAE plug, a short-term pressurisation of approx. 1 bar is possible.
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
Additional information: Diameter A prevents the inadvertent assembly with a quick connector.
GPN 250
Protective Caps for Pipes
Quality advantages
Protection for pipes in accordance with DIN EN 10220, DIN EN 10255, and DIN EN ISO 1127.
Thick-walled design for higher demands.
Discontinuous internal beads offset by 180° degrees, permit venting and pressure equalisation for pressure compensation.
GPN 255
Protective Caps
Quality advantages
Extremely heat resistant up to 250 °C
Highly tear-resistant material for increased demands.
Flexible material for accomodating larger tolerances.
Protection for studs and pipe ends.
GPN 280
End Caps
Quality advantages
Reinforced base for increased demands.
Suitable for pipes; particularly suitable as gliders for furniture and equipment.
GPN 290
Shaft Protection
Quality advantages
Protection for shaft ends in accordance with DIN EN 748-1 and DIN EN 50347.
Also secures the feather key.
GPN 350
Closures
Quality advantages
Can be used as plug or cap.
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
Suitable for aperatures, studs, conductors and threads.
GPN 351
Flexible Closures
Quality advantages
Heat resistant to 150 °C.
Suitable for different diameters due to flexible material.
Suitable for apertures, studs, conductors, hexagonal shapes and threads.
GPN 380
HV Connector Caps
Quality advantages
The plastic used consists of 100 % recycled material.
Protection for High Voltage Connector Systems using our registered design.
Quick disassembly thanks to non-slip grip surfaces. Mounting on both sides possible (type B).
Protection against splashing water from any direction (IPX4) depending on the specific connector design and quality.
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
GPN 384
HV Connector Covers
Quality advantages
The plastic used consists of 100 % recycled material.
Protection for High Voltage Connector Systems using our registered design.
Quick disassembly thanks to non-slip grip surfaces. Mounting on both sides possible.
Protection against splashing water from any direction (IPX4) depending on the specific connector design and quality.
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
GPN 385
HV Connector Covers
Quality advantages
The plastic used consists of 100 % recycled material.
Protection for High Voltage Connector Systems using our registered design.
Quick disassembly thanks to non-slip grip surfaces. Mounting on both sides possible.
Protection against water during high pressure/steam jet cleaning, specifically for road vehicles (IPX9K), performance depending on the specific connector design and quality.
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
GPN 400
ECO-Universal Protection
Quality advantages
Consists of 100 % post consumer recyclate.
Can be used universally as plug or cap. The tapered design is ideal for accomodating tolerances.
Up to 75 % less transport and storage volume due to stackable design.
GPN 401
ECO-Universal Protection
Quality advantages
Consists of 100 % post consumer recyclate.
Can be used universally as plug or cap. The tapered design is ideal for accomodating tolerances.
Up to 75 % less transport and storage volume due to stackable design.
GPN 480
ECO-Grip Closures
Quality advantages
Consists of 100 % post consumer recyclate.
With practical tab for fast removal.
Can be used universally as plug or cap.
Up to 75 % less transport and storage volume due to stackable design.
GPN 481
ECO-Grip Closures
Quality advantages
Consists of 100 % post consumer recyclate.
With practical tab for fast removal.
Can be used universally as plug or cap.
Up to 75 % less transport and storage volume due to stackable design.

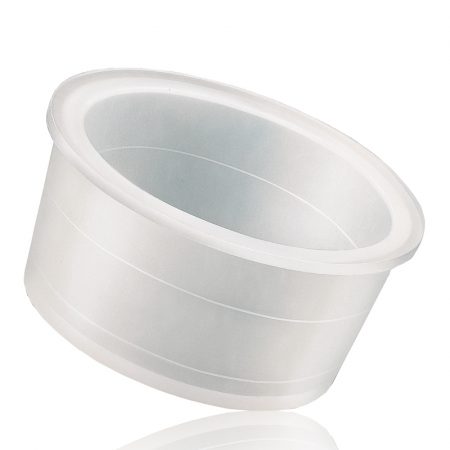

GPN 600
Tapered Closures
Quality advantages
Can be used universally as plug or cap. The tapered design is ideal for accomodating tolerances.
To close off bore holes and internal threads, or to protect studs and external threads.
GPN 601
Thin Walled Tapered Closures
Quality advantages
Easy handling due to being a thinner walled version of the GPN 600.
Less material used during production.
Can be used universally as plug or cap. The tapered design is ideal for accomodating tolerances.
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
To close off bore holes and internal openings, or to protect studs and external threads.
GPN 602
Thin Walled Tapered Closures
Quality advantages
Easy handling due to being a thinner walled version of the GPN 600.
Less material used during production.
Can be used universally as plug or cap. The tapered design is ideal for accomodating tolerances.
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
To close off bore holes and internal openings, or to protect studs and external threads.

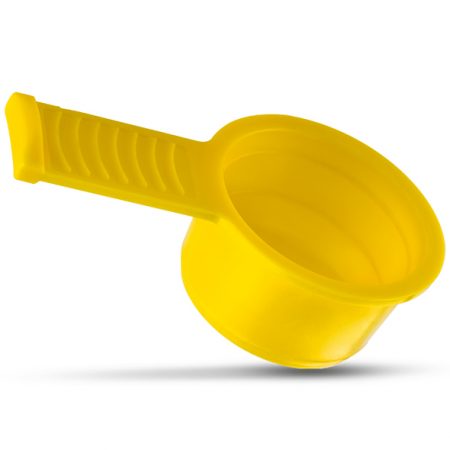

GPN 608
Tapered Closures with side tab
Quality advantages
Newly designed removal tab for fast handling. Protected tab design.
Can be used universally as plug or cap. The tapered design is ideal for accomodating tolerances.
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
Internal fins providing venting and pressure equalisation.. Suitable for studs, pins, external threads and the mating surfaces of SAE quick-connect plugs.

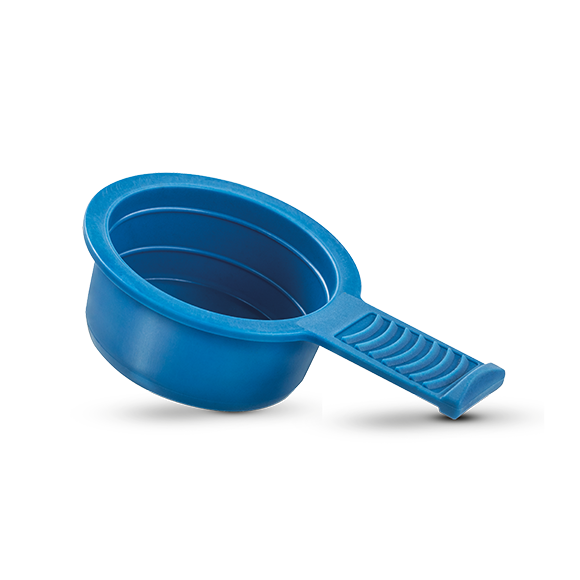

GPN 608 PCR-PE, blue
Tapered Closures with side tab
Quality advantages
The article consists of 98% PCR-PE (post consumer recyclate) and 2% color based on a PIR (post industrial recyclate) carrier.
Newly designed removal tab for fast handling. Protected tab design.
Can be used universally as plug or cap. The tapered design is ideal for accomodating tolerances.
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
To close off bore holes and internal threads, or to protect studs and external threads.

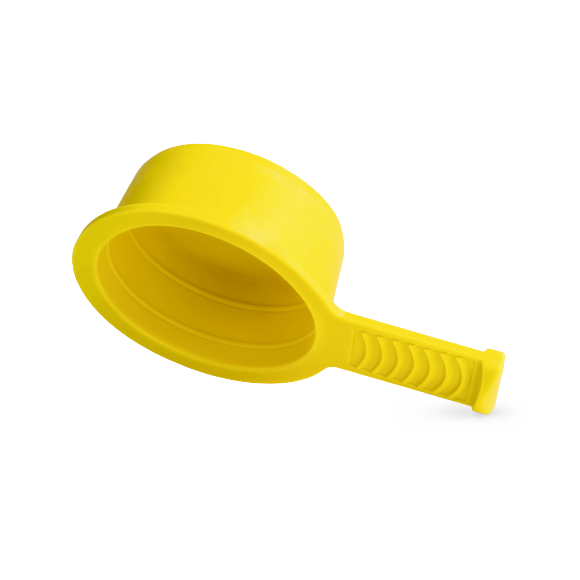

GPN 609
Flexible Tapered Closures with side tab
Quality advantages
Heat resistant to 150 °C.
Newly designed removal tab for fast handling. Protected tab design.
Can be used universally as plug or cap. The tapered design is ideal for accomodating tolerances.
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
To close off bore holes and internal threads, or to protect studs and external threads.
GPN 610
Universal Protection
Quality advantages
Can be used universally as plug or cap. The tapered design is ideal for accomodating tolerances.
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
To close off bore holes and internal threads, or to protect studs and external threads.

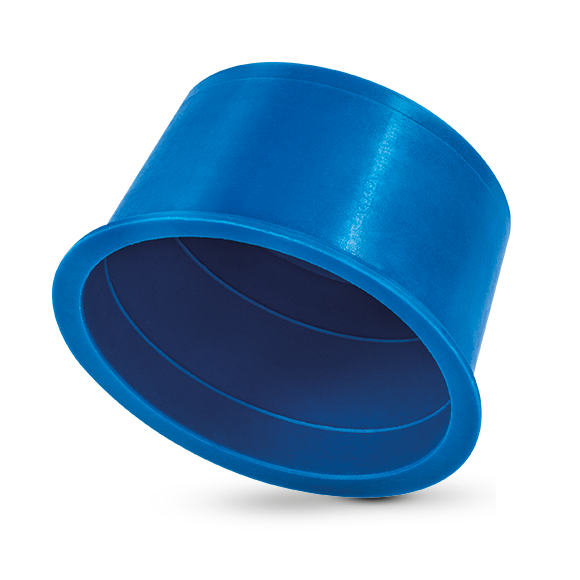

GPN 610 PCR-PE, blue
Universal Protection
Quality advantages
The article consists of 98% PCR-PE (post consumer recyclate) and 2% color based on a PIR (post industrial recyclate) carrier.
Can be used universally as plug or cap. The tapered design is ideal for accomodating tolerances.
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
To close off bore holes and internal threads, or to protect studs and external threads.
GPN 615
Universal Protection with Ring Lug
Quality advantages
Easy removal due to ring lug.
The tapered design of the plug accomodates larger tolerances. Can also be used as a cap.
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
Protects threads, pipes, hoses and bores. No loss of construction space due to flat-type ring lug.
GPN 620
Universal Protection
Quality advantages
Can be used as a plug or cap for a wide range of applications. Tapered design for accommodating tolerances.
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
Same design as GPN 610 but with larger cover flange.
GPN 690
Protective Caps
Quality advantages
Protection for SAE flange collars.
Also suitable for pipe ends and hose-fittings. A circumferential rim ensures firm fit and easy handling.
GPN 695
Protective Covers
Quality advantages
Suitable for ring-fittings in accordance with DIN 7642 design B and E.
The internal clamping ring is centered in the ring opening of the hollow screw, thereby preventing an ingress of dirt. Also suitable for non standard ring-type nipples.
GPN 696
Protective Caps with Strap
Quality advantages
Fast mounting decreases process costs due to flexible material. Additional saving due to fast removal: Pull the strap and it’s predetermined breaking point will ease the removal.
Heat resistant to 150 °C.
Suitable for hollow screws.
GPN 900
Closures
Quality advantages
Cylindrical closure – can be used as plug or cap.
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
GPN 920Type B
Protective Dust Caps
Quality advantages
Protects open plug-in couplings from damage and contamination.
Prevents damage and contamination and provides limited sealing action.
Self-retaining design due to integral strap.
GPN 940
Fast-fit Caps
Quality advantages
Tamper-evident closure for valves in accordance with DIN 477-1.
Particularly fast and easy to remove.
With ventilation tab for safe leakage. Also suitable for external threads and studs.
GPN 950
Protective Caps
Quality advantages
Can be used as cap or plug.
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
With knurled collar. Suitable for bore holes, internal and external threads, or pipe ends.
GPN 980
Grease Nipple Caps
Quality advantages
Protection for the tapred heads of grease nipples in accordance with DIN EN 71412.
Protect the tapered head of grease nipples against contamination and visibly mark lubrication points. Caps are knurled for ease of grip. Design A: without tab – design B: with tab.
GPN 985
Grease Nippel Caps
Quality advantages
Protection for the tapred heads of grease nipples in accordance with DIN EN 71412.
Protect the tapered head of grease nipples against contamination and visibly mark lubrication points. Caps are knurled for ease of grip. Design A: without tab – design B: with tab.
GPN 1000
Hexagonal Caps
Quality advantages
Thick-walled design for higher demands.
Protection for nuts and bolts. Optimum corrosion protection. The cylindrical outer contour prevents the appliction of spanners.
GPN 1010
Snap-on Caps
Quality advantages
Protection of nuts and bolts. Optimum corrosion protection. Designed for greater bolt length. The circumferential rim snaps in place beneath the nut.
GPN 1050
Hexagonal Caps
Quality advantages
For hose ends with union nut and hexagonal nut. These products provide effective protection against contamination, damage, corrosion and injuries.
KAPSTO® – PROTECTIVE CAPS
KAPSTO® – plastic protective caps for every application.
Pöppelmann KAPSTO® caps provide optimal protection during production, storage and transport. Whether for external threads, bolts, pipes and pins – with over 3,000 dimensions, the KAPSTO® standard program provides the perfect protection for outdoor environments. Plastic end caps, pipe protective caps, cover caps and protective sleeves provide your application with bespoke protection according to your needs. Conical caps, interior discs, flexible material or clamping ribs provide the best-possible fitting together with maximum protection. KAPSTO® plastic protective caps are used in a number of industry sectors. Vehicle construction, hydraulics, pneumatics, surface engineering, furniture construction, fluid engineering, electrical engineering, civil engineering, ancillary industries and many other sectors. Our protective caps and plugs have been optimised to fit the application for which they are intended. Whether you are looking for something robust, low abrasion, temperature-resistant, blow-resistant or providing good sealing characteristics, we have the right protective cap for your every need.
